Ceramic Fiber Modules Thermal Insulation Ceramic Fiber Folding Blanket Module

Name: Ceramic Fiber Modules Thermal Insulation Ceramic Fiber Folding Blanket Module
Brand: RONGSHENG
Price: 1 USD

China Ceramic Fiber Modules Thermal Insulation Ceramic Fiber Folding Blanket Module wholesale

Brand Name : RONGSHENG

Certification : ISO9001

Place of Origin : Henan, China

MOQ : 400 rolls

Grade : COM (Common)

Thermal Conductivi : 0.17

Fiber Diameter : 3-5

Colour : white

Apparent Porosity : 18

Weight : 14kg

Density : 6 lb/ft³

Application : Insulation for high temperature equipment

Package : braided bag/carton

Tempreture : 1260

Moisture Content : ≤1%

Shape : Ceramic Fiber Blanket

Thermal Conductivity : 0.24 W/mK

Tensile Strength : 5.6 psi

Length : 25 feet

Contact Now

Product Description

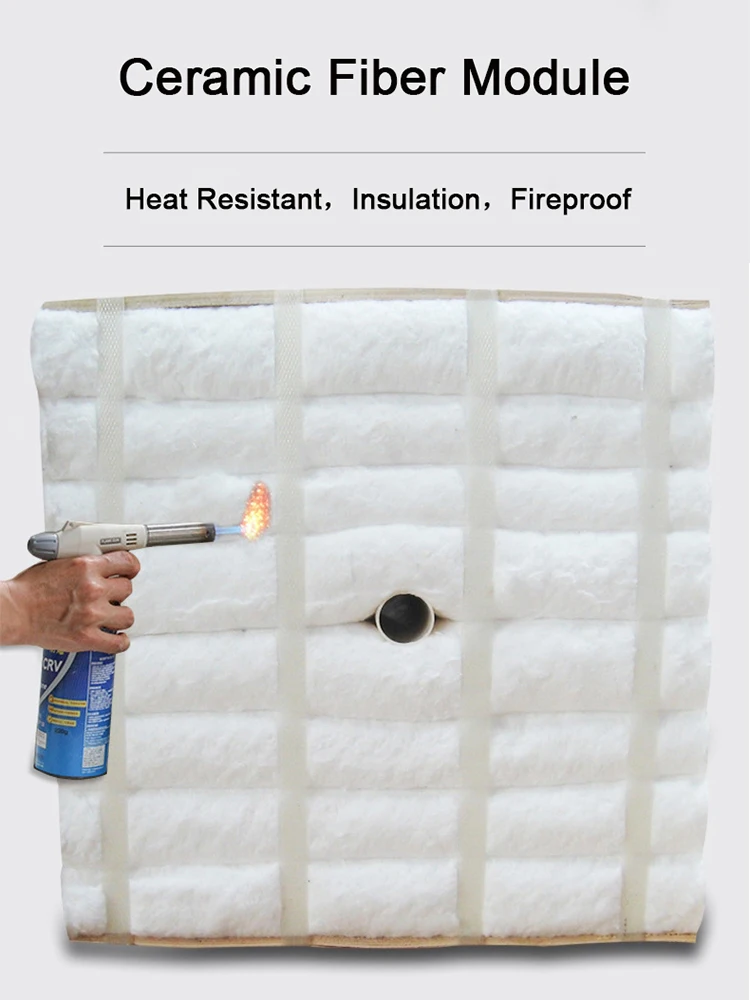

Ceramic Fiber Modules Thermal Insulation Ceramic Fiber Folding Blanket Module

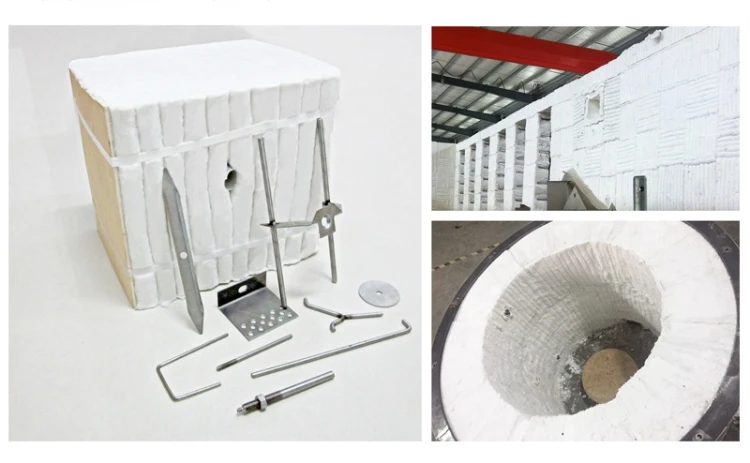

Ceramic Fiber Module Descriptions Ceramic fiber module are made from compressed ceramic fiber blanket.Ceramic fiber module is produced by various anchoring systems, white color, regular size, good refractory heat insulation effect, classified temperature 1050-1600 °C, used in various kiln lining insulation and various thermal equipment lining.

Ceramic Fiber Module Characteristics Low bulk density,low thermal conductivity. Resistance to heat-shock, ability to resist the scouring of airflow. Excellent mechanical strength ,Good safety with anchor inside Easy to install. after installing the lining form a seamless space, good insulation effect.

Specification

Ceramic fiber modules can be divided into the following types based on temperature grade 1050℃ Ordinary ceramic fiber module 1260℃ Standard ceramic fiber module 1260℃ High purity ceramic fiber module 1350℃ High aluminum ceramic fiber module 1430℃ Zirconium type ceramic fiber module 1600℃ ceramic fiber module

Ceramic Fiber Module		RS1050	RS1260ST	RS1260HP	RS1350 HA	RS1430 Zr	RS1600 PMF
Classification Temperature		1050	1260	1260	1350	1430	1600
192kg/m3/at()℃/24h Linear Shrinkage Rate		≤2.0 (850℃)	≤2.0 (1000℃)	≤2.0 (1050℃)	≤2.0 (1100℃)	≤2.5 (1200℃)	≤1.5 (1450℃)
Density (KG/M3)		172-240	172-240	172-240	172-240	172-240	172-240
Thermal Conductivity Rate(W/m.k)	400℃	0.08	0.08	0.08	0.08	0.08	-
	600℃	0.15	0.15	0.15	0.12	0.12	0.12
	800℃	0.22	0.20	0.19	0.18	0.16	0.15
	1000℃	-	-	0.22	0.12	0.19	0.18
Chemical Composition(%)	Al2O3	42-44	45-46	47-49	52-55	34-36	72-75
	Al2O3+SiO2	≥99.0	≥99.0	≥99.0	≥99.0	≥99.0	≥99.0
	ZrO3	-	-	-	-	15-17	-
	Other	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0

Product Application

Ceramic Fiber Module Application 1.Steel Industry: Heat treatment furnaces Ladle cover, annealing furnace,rotary furnace,bell furnace,walking beam furnace,hot air and flue pipes etc.2.Ceramic Industry:Tunnel kiln, shuttle kiln, end-fired furnaces, roller kiln.
Petrochemical Industry: Atmospheric furnace, transforming furnace, coking furnace, cracking furnace, flue etc.
Heat-treatment industry: Annealing furnaces, normalizing furnaces, drawing furnaces, pit furnaces, kiln cars.
High- temperature equipment: For example, pot furnaces, electricity resistance furnaces and other kinds of industrial furnaces.
Green energy industry:Waste incinerators, RTO exhaust treatment furnace, SCR environmental catalytic stove etc.
